Project 01: Ideas

In project 1, we need to produce 2 sketches, for sketches 1, we need to describe the current environment of the big dome with our idea to work on the dome soon. For sketches 2, we need to sketches the details of the existing structure and connectivity Big Dome and specification....

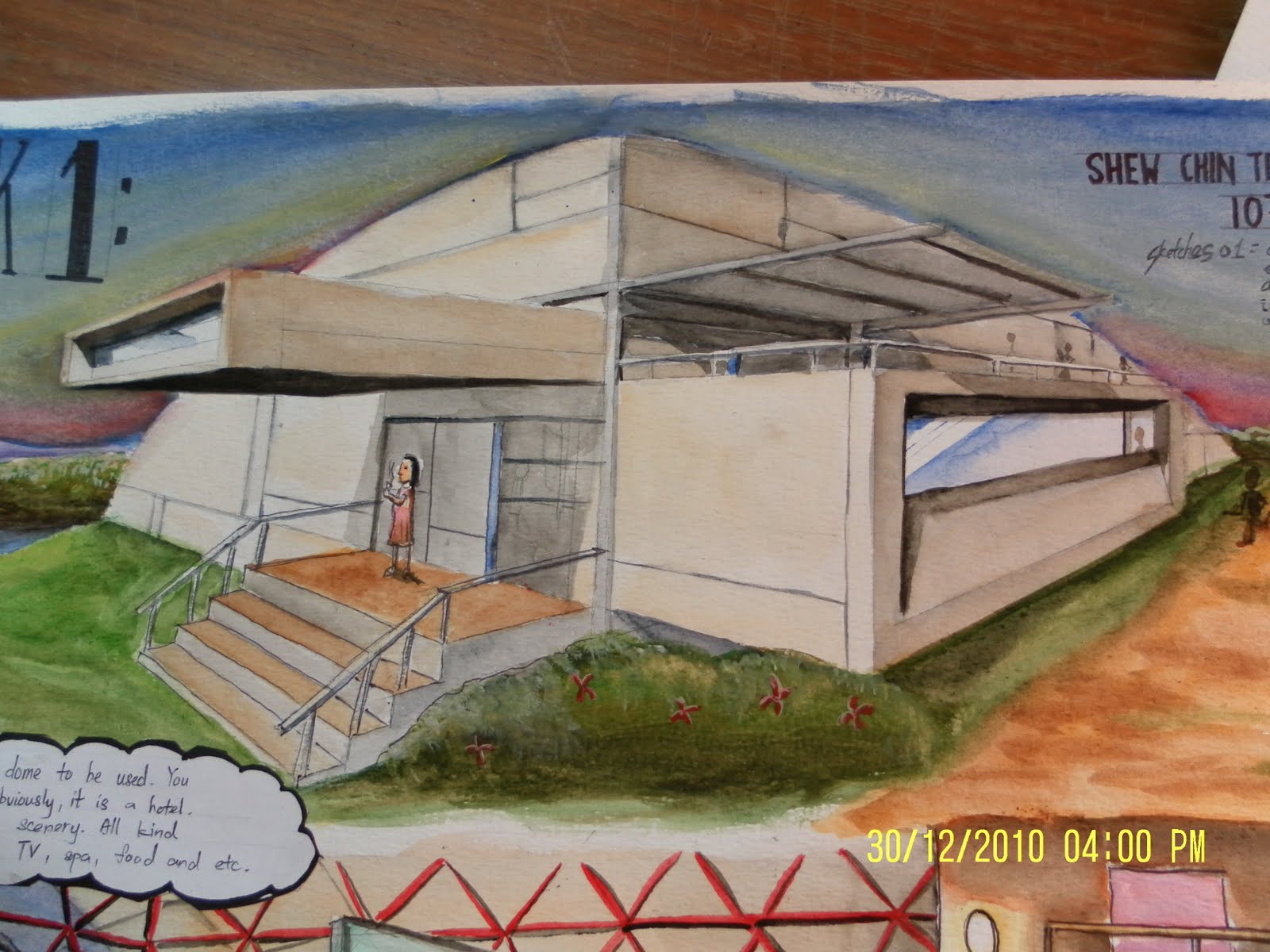

For 1st sketches, I plan to use a quarter part of the dome to build a building. You can observed the figure above and below. Obviously, it is a 5 stars hotel. It locates near a lake with superb scenery. All kind of service will be provide at here, like spa, TV, food and etc.

I spent a long time to do it, although it is not so perfect, but i am quite satisfied with it. I hope it can be built up~~ haha!!


For 2nd sketches, i just sketch up what we had done last semester. For figure 1, it is the connector that we shaped to fix on the top of the struts. For figure 2 is the strut with connector. While figure 3 is the struts connected by the screw and figure 4 is the scenery of sky in the dome~~
